| MOQ: | 1 |
| Price: | 789090 |
| Standard Packaging: | wooden cases |
| Delivery Period: | 30 days |
| Payment Method: | L/C,D/P,T/T,Western Union |
| Supply Capacity: | 56 |
1. 天然气发电机组技术参数:

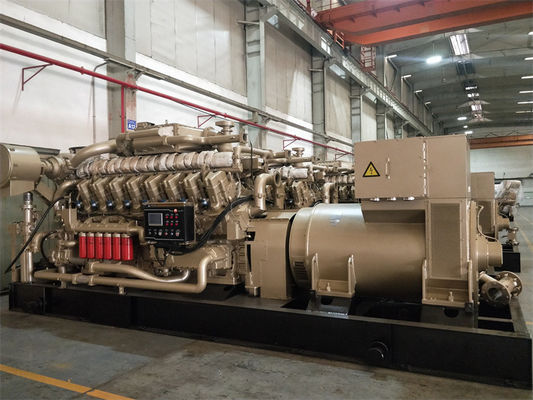

Main technical specification of Natural gas gensets
|
Model of generating sets 机组型号 |
1000GF-TK |
|
Model of engine 发动机型号 |
H16V190ZLT-2 |
|
Model of alternator发电机型号 |
1FC6506-4LA42 |
|
Rated capacity 额定容量 |
1250KVA |
|
Rated power 额定功率 |
1000KW |
|
Continuous power 持续功率 |
850KW |
|
Rated speed 额定转速 |
1000 r/min. |
|
CH4 Requirement 甲烷浓度要求 |
≥70% |
|
H2S Requirement 硫化氢要求 |
≤15ppm |
|
Gas pressure 燃气压力要求 |
≥7kpa |
|
H2O |
no liquid state water vapour in natural gas 天然气中不允许存在液态水 |
|
Rated voltage 额定电压 |
400V |
|
Rated frequency 额定频率 |
50Hz |
|
Rated power factor功率因数 |
0.8 |
|
Supply method 供电方式 |
3 phases 4 lines三相四线制 |
|
Excitation method 励磁方式 |
Brushless无刷 |
|
Starting method 启动方式 |
24V DC starter 24V or Air motor |
|
Cooling method 冷却方式 |
闭式Close |
|
Speed modulate method调速方式 |
Electronic control电子调速 |
|
Net weight 净质量kg |
21000kg |
|
Overall dimension 外形尺寸 L×B×H(mm) |
5920×2180×2200(mm) |
2. 机组的主要电气指标:
Main electrical performance data
|
电压 Voltage |
稳定调整率 Stable regulating rate |
±2.5% |
|
瞬态调整率 Instantaneous regulating rate |
≤±20% |
|
|
稳定时间 Recovery time |
≤2s |
|
|
波动率 Fluctuation |
≤1% |
|
|
频率 Frequency |
稳定调整率 Stable regulating rate |
0～5% |
|
瞬态调整率 Instantaneous regulating rate |
≤±10% |
|
|
稳定时间 Recovery time |
7s |
|
|
波动率 Fluctuation |
≤1% |
3. 发动机的主要技术参数:
Main technical data of engine
|
Model of engine 发动机型号 |
H16V190ZLT-2 |
|
Rated power/speed 额定功率/转速 |
1200KW/1000rpm |
|
Overall dimension 外形尺寸 L×B×H |
3830×2060×2315(mm) |
|
Net weight 净质量 |
13000kg |
|
Specific oil consumption 机油消耗率 |
≤1.0g/KW.h |
|
Number and layout of cylinders 缸数及排列 |
16缸, 60° V型 |
|
Type 形式 |
Four stroke, water cooled, turbocharged and aftercooled, spark plug ignition 四冲程, 水冷, 增压中冷, 火花塞点火 |
|
Bore 气缸直径 |
190mm |
|
Stroke 冲程 |
215mm |
|
Total displacement 气缸总排量 |
97.53L |
|
Compression ratio 压缩比 |
10:1 |
|
Direction of rotation (facing to end) 转向 |
Counter-Clockwise 逆时针 (面向飞轮端) |
|
Lubricating method 润滑方式 |
Pressure and splash lubrication 压力和飞溅润滑 |
4. 供货范围Supply scope:
天然气发动机,发电机,公共底盘,控制屏,排气管和排气消音器,随机备件,随机工具,蓄电池充电器,蓄电池,包装,商检,出厂相关技术文件.
Natural gas engine/ generator/common base// control panel/ exhaust pipe and exhaust silencer/ spare parts/ spare tools/ battery charger/ battery/ case/ document/ Commodity inspection.
|
|
