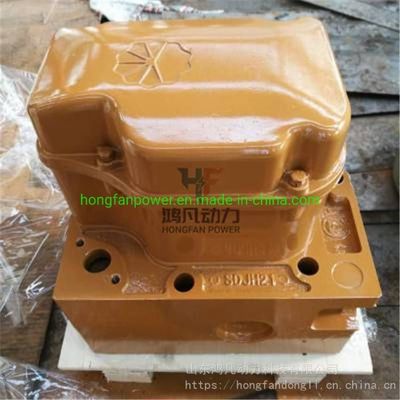

Jichai 12V190 Chidong Shengdong Diesel Engine Parts 12vb. 03.00 Cylinder Head Assembly
  • name
  • name
  • name
  • name
  • name
  • name

Jichai 12V190 Chidong Shengdong Diesel Engine Parts 12vb. 03.00 Cylinder Head Assembly

Detail Information
Product Description
Detail Information
Model NO.:
Jichai 12V190
Cooling Method:
Water Cooling
Installation Method:
Portable
Generator Type:
Steam Turbine Generator
Certification Of Products:
ISO9001
Period Of Warranty:
Half A Year
The Cylinder Diameter:
190
Arrangement Of Cylinders:
"V"
Product Features:
Jichai Engine Parts
Land For Sale:
The National
Transport Package:
Export Wooden Case
Trademark:
Hongfan
Origin:
Jinan, Shandong, China
HS Code:
8409999000
Production Capacity:
10000pieces/Year
Product Description
jichai, chidong,shengdong diesel engine parts 12vb.03.00 cylinder head assembly
Jechai 500KW cylinder head assembly accessories details (engine) 127.03.00C

no num name
1,2,3,5,6,7,12,13, 12VB.03.10 Rocker arm
8 12VB.03.09B Rocker arm seat bolt (long)
9 GB93 Washer 14 (Rocker arm retaining bolt)
10 Q/JC11013 Nut M14*1.5
11 12VB.03.04 Short bolt (Rocker arm fixing bolt)
14 1812T.03.03 Coupling sleeve
15 Q/JC11010 Bolt M10*30 (press plate fixing bolt)
16 127.03.06 Spark plug sheath gasket
17 127.03.04B Pressure plate
18 127.03.03 gasket
21 127.03.80.01C Cylinder head
23 12VB.03.51 Cushion (Rocker arm seat)
29 127.03.80.04 Intake valve seat
30 12VB.03.37C Intake valve
31 12VB.03.22C Exhaust valve
32 127.03.80.03A Exhaust valve seat
33 12VB.03.29 Gas plug
36 GB848 Washer 10 (Lower cover housing retaining bolt)
37 GB93 Washer 10 (press plate retaining bolt)
41,42,43,44 12VB.03.70 Fork assembly
45 12VB.03.30B Transverse arm (bridge) convex head parts
46 GB6173 Nut M14*1 (Adjusting Screw)
47 12VB.03.60B Adjusting screw parts (Rocker arm)
48 12VB.03.03B Cross arm cross bridge
49 12VB.03.90B Adjusting screw parts (cross bridge)
50,51,52 601.03.16A Buckle tile
53 127.03.30A Valve rotating mechanism
54 Z12V.03.18A Outer valve spring
55 Z12V.03.17A Internal valve spring
57 12VB.03.12A Seal ring
58 1812T.03.14 Lower housing
60 12VB.03.11 Seal ring
61 1812T.03.02 Upper housing
62 GB848 Washer 8 (Upper cover housing retaining bolt)
63 GB5782 Bolt M8*30 (Upper cover housing retaining bolt)
64 1812T.03.05 Spark plug cover
65 1812T.03.01 Set of
66 1812T.03.04 O-ring seal
67 Q/JC11010 Bolt M10*100 (Lower cover housing retaining bolt)
69 12VB.03.19 Spring lower seat
  127.03.80.06 Oil seal


Jichai 12V190, Chidong, Shengdong Diesel Engine Parts 12vb. 03.00 Cylinder Head AssemblyJichai 12V190, Chidong, Shengdong Diesel Engine Parts 12vb. 03.00 Cylinder Head AssemblyJichai 12V190, Chidong, Shengdong Diesel Engine Parts 12vb. 03.00 Cylinder Head Assembly
Answer JiChai 6190 free ship 8 v190 engine/machine/JiChai JiChai 12 v190 engine | gas machine/JiChai 16 v190 biogas engine troubleshooting, such as machine failure analysis, etc. The company is located in Jinan, Shandong Province. It provides Jichai 190 engine and generator set accessories for thousands of customers. Ji Chai accessories sales center 24 hours for customer service, accessories warehouse, convenient logistics, fast delivery, accessories factory quality, reasonable! The company supplies Jichai 190 accessories, Jichai diesel engine accessories, Jichai 12V190 drilling supporting diesel engine accessories, Jichai 6190-8190 Marine engine accessories, Jichai natural gas generator set accessories, Jichai 500KW, 600KW, Jichai H16V190 gas generator set accessories, Shengda 190 gas machine accessories.
